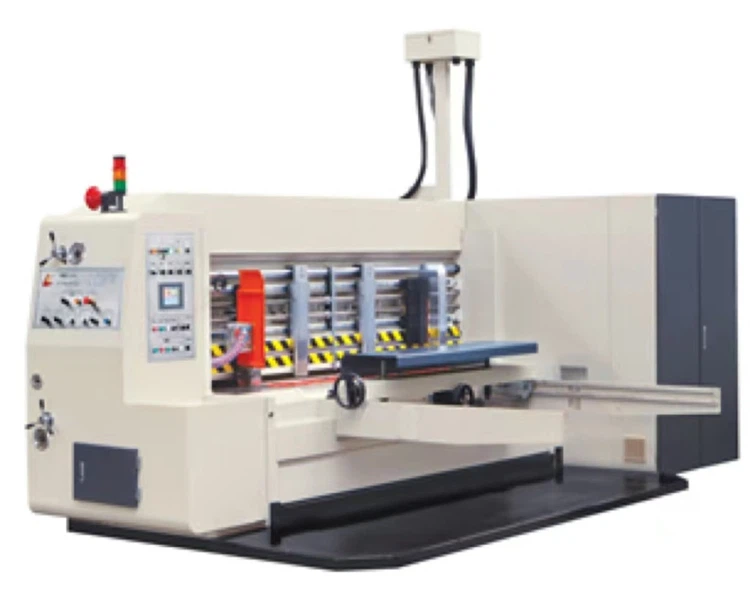

Semi Computerized Flexo Printer Slotter RDC
★ Our Semi Computerized Flexo Printer Slotter RDC Machine is equipped with computer control system for trouble shooting, production management and remote maintenance.
★ We select international famous good quality brands of electrical components and transfer bearings, with European safety standard CE conformity.
★ There is Quick Mounting Device for the printing plate, with electric register zeroing.
★ There is Bridge platform to improve synchronization and printing gap adjustment.
★ The different Size with different Speed of Our Semi Computerized Flexo Printer Slotter RDC (Rotary Die-cutting) Machine are available, such as: 900x2000 mm, 900x2400 mm, 1200x2400 mm, 1200x2800 mm, 1600x2800 mm, etc. with 250 pcs or 150 pcs per minute. etc.
Feeder Unit:
★ Operation can be controlled by the main console and touch screens at each unit.
★The brush and the dust collector can be lifted synchronously.
★ With Duplex feeding roller device, rubber feeding roller is equipped with quick replacement device.
★ Air control is adjustable.
★ Precious padding guidance method for lateral movement.
★ With Electric side squaring device and paper support holder.
Printer Unit：
★ Operation can be controlled by the main console and the touch screen of each Printer Unit.
★ There is Ink saving circulate system, safety ink taking, If short of ink, the machine can make alarm to remind the operator to put more ink in.
★ Plate guide roller can be moved quickly and laterally.
★ The Bridge platform and printing gap can be lifted and adjustment synchronously.
★ There is Quick mounting device for printing plate at each Printer Unit, with motorized register zeroing function.
★ Optional: Doctor Blade Inking System for one or more Printer Units.
Slotter Unit：
★ The main console and the touch screen of Slotter Unit can control the operation.
★ The height of the carton box can be controlled by electric motorized.
★ The Slotter Unit can move the position of the middle knife greatly.
★ The Slotter Unit is equipped with the Bushing guide transverse motion device.
★ Pre-creaser and slotting bracket are electric controlled for the gap.
Rotary Die-cutter Unit:
★ Upward, die-cutting, thorough cleaning of waste, electric pressure adjustment.
★ Can quickly replace die-cutting blankets, with grinding mechanism. Valuable programmable speed difference compensation system for die cutting accuracy.
★ Die cutting roller pneumatic self-locking device, die cutting smooth.
★ Thin guide roller displacement electric control, can make quick order changes.
Stacker Unit：
★ With Receiving arm pneumatic lifting device, the sealing degree can be adjusted.
★ With Side blocks and pneumatic stacker lifting.
★ Different speed segment types are stacked, and the shunting belt is controlled by the inverter.
★ The inverter controls the stacker platform, with the protection device, can improve the safety performance.
