Carton Box Packaging Machines

Why Choose Us

Rich experience
Aydly Intelligent Packaging Machinery (Guangdong) Co., Ltd. is one of the subsidiary of A.S.I. Group (American Sunflower International Group Co., Ltd.) headquartered in New York USA, Singapore and Hong Kong, China.

One-stop solution
We integrate technology research and development, manufacturing and processing, assembly, sales, export, installation and after-sales service, etc. We commit to provide a full range of solutions to the global customers of paper and paperboards related with industries of manufacturing, printing and packaging.

High quality
We specialize in carton box printing and packaging machines, corrugated paperboard production lines, laminating machines, flat bed die cutting and creasing machines, EPC with paper making machines, etc.

High quality service
Our sales staff visit the customers' plants and discuss requirements, online communication, answer questions and solve difficulties. Technicians on-site installation, regular factory tour to check the machines running and maintenance, repair and fix, global express delivery for the ordered parts, etc.

What Is Carton Box Printing Machine

A carton box packaging machine is a piece of industrial equipment used in manufacturing and packaging processes to automate the formation, filling, and sealing of cartons or boxes. These machines are commonly used in various industries, including food and beverage, pharmaceuticals, cosmetics, and consumer goods, to streamline the packaging process and increase efficiency. carton box packaging machines come in different types and can include carton forming, carton boxing, carton sealing etc.

Full Automatic Lock-bottom Folder Gluer Machine

Aydly full automatic lock-bottom folding gluing machine is specially used for paperboard shaping

Add to Inquiry

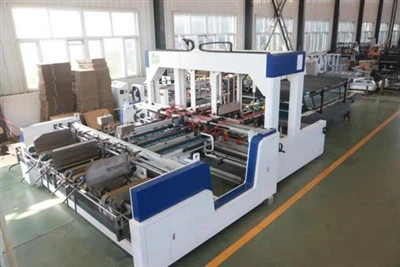

Double Piece Folding Gluing Machine

Aydly double piece folding gluing machine is a high-precision automatic carton gluing machine for

Add to Inquiry

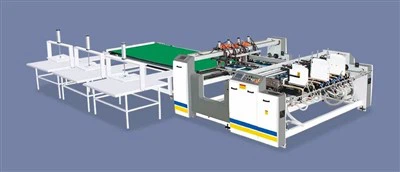

Two Pieces Folder Gluer

Aydly double sheets folding gluing machine is a domestically advanced two-piece gluing and forming

Add to Inquiry

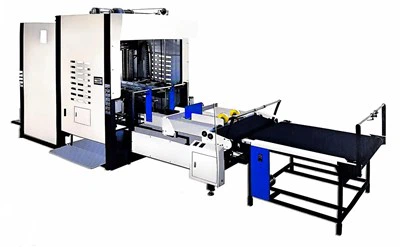

Turning Paperboard Machine

Aydly turning paperboard machine is a supporting equipment for the fully automatic cardboard

Add to Inquiry

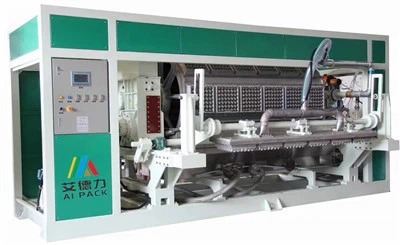

Egg Tray Machine

The egg tray making machine is necessary for the production, customer could buy it from our Aydly

Add to Inquiry
Partition Assembler

Aydly partition assembler is optimized to become a new type of split assembly machine based on the

Add to Inquiry

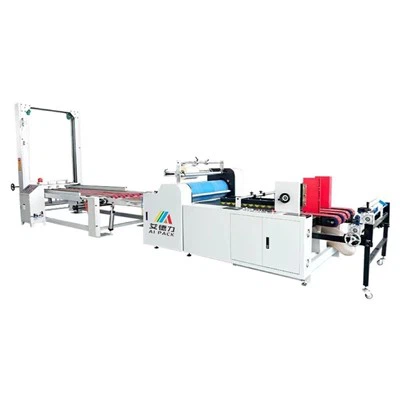

Film Laminator

Aydly fully automatic film laminator for high graphic corrugated paperboards is our company's

Add to Inquiry

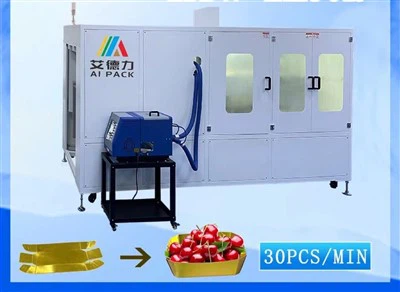

Hot Melt Gluing Folding Machine

AYDLY fully automatic hot melt gluing folding machine with glue spraying is rationally designed,

Add to Inquiry
Tray Former Machine

Tray maker machine uses international advanced technology manufacturing, and the selection of

Add to Inquiry

First 12 3 4 Last 1/4

Benefits of Using Carton Box Packaging Machines in Packaging Industry

In the modern packaging industry, automation and efficiency are paramount. Carton box packaging machines have emerged as indispensable tools, revolutionizing the way products are packaged and shipped. These machines offer a plethora of benefits that enhance productivity, reduce costs, and improve overall packaging quality.

Automated packaging processes

One of the primary advantages of carton box packaging machines is their ability to automate the packaging process. Machines can perform various tasks, such as erecting boxes, inserting products, and sealing them, with minimal human intervention. This automation streamlines the packaging workflow, eliminating manual labor and reducing the risk of errors.

Increased productivity and efficiency

Automation leads to significant productivity gains. Carton box packaging machines can operate continuously for extended periods, handling a large volume of products quickly and efficiently. This increased throughput allows manufacturers to meet higher production demands and shorten lead times.

Consistency and quality

Machines provide consistent and high-quality packaging. They precisely fold and erect boxes to ensure proper dimensions, and they apply seals securely, preventing product damage during transit. This consistency enhances the overall presentation of products and protects them from external factors.

Cost reduction

Automating the packaging process reduces labor costs associated with manual packaging. Machines can replace multiple workers, allowing manufacturers to allocate resources to other areas of their operations. Additionally, automated packaging eliminates the need for overtime and reduces the risk of worker injuries, further reducing overall costs.

Reduced waste and sustainability

Carton box packaging machines optimize the use of packaging materials. They create boxes with precise dimensions, minimizing material waste. Furthermore, machines can be integrated with recycled paper systems, promoting sustainability and reducing environmental impact.

Flexibility and adaptability

Modern carton box packaging machines are highly flexible and adaptable. They can handle a wide range of box sizes, shapes, and materials, making them suitable for various packaging needs. This flexibility allows manufacturers to tailor their packaging solutions to specific product requirements.

Components of Carton Box Printing Machine

Here are some key features and components commonly found in carton box packaging machines:

Conveyor system: A conveyor system transports products from the production line to the packing station. It can be designed to accommodate various types and sizes of products.

Product orientation and alignment: Depending on the product's shape and size, the machine may include mechanisms to orient and align the products correctly before packing.

Box or carton supply: These machines typically have a magazine or storage area where flat boxes or cartons are stored. The machine can retrieve these boxes and set them up for packing.

Pick-and-place mechanism: A robotic or mechanical arm is used to pick up individual products and place them into the boxes. This mechanism can be equipped with sensors and vision systems to ensure accurate placement.

Filling and cushioning: Some machines may include mechanisms for adding cushioning materials or additional product inserts, such as foam, bubble wrap, or paper, to protect the products during shipping.

Box sealing and closure: After the products are placed in the boxes, the machine may automatically fold, seal, and close the boxes using various methods like tape, glue, or staples.

Labeling and printing: Some machines can also print and apply labels, barcodes, or date codes to the boxes for tracking and identification purposes.

Quality control and inspection: Vision systems and sensors can be integrated to inspect the products and packaging for defects or discrepancies.

Control system: An electronic control system manages the entire packing process, ensuring that it operates efficiently and according to preset parameters.

Customization and flexibility: Many carton box packaging machines are designed to handle a variety of box sizes and product types, offering flexibility for different production needs.

Different Features of a Carton Box Packaging Machine

Conveyor System: The conveyor is a critical part of the machine, driving the cartons to the next section. It features rollers and is powered by an electric motor connected to an electrically-powered device. The information printed on the cartons, including product details, expiration dates, and any relevant disclaimers, is both real and intuitive for the consumer. To ensure safety and effectiveness, the conveyor must be properly grounded.

Pneumatic System: The pneumatic system consists of the motor and push plates. The electricity from these components drives the rotary action of the packaging machinery. The motor, a key mechanical part of the carton box packaging machine, is powered by an electric panel. Motors are responsible for the machine’s movement, with an electric motor typically powering the entire system. The wattage, phase, and revolutions per minute (RPM) of the motors determine the power supplied to the machine. Machines may have various specifications to serve different purposes. If problems arise, the machine should be stopped and inspected by a professional.

Operator Maintenance: The operator should use the manuals to diagnose problems and identify fault indications. The manuals should provide the necessary support. If repairs are needed and you are unsure how to proceed, consult a qualified technician and ask for a list of spare parts. The mechanical components of the machine should not be altered; repairs should be conducted by the manufacturer.

Operational Function: When operating correctly, a carton box packaging machine transfers mechanical movement through the motors in the gearing system. Initially, the motors power the main drive, after which the machine discharges the finished cartons to downstream operations. An automatic carton box packaging machine will yield the best results if configured with the correct settings.

Carton Box Packaging Machine Maintenance

To make your maintenance process as efficient as possible, start by developing your procedures beforehand and implementing them on a recurring basis. Monitoring for system malfunctions is crucial, as these may indicate a need for replacement or repair. Proper safeguarding and monitoring will ensure correct maintenance and keep the machine clean and operational.

Periodic maintenance prevents problems, extends the lifespan of the machine, and saves money. A failure in a carton box packaging machine can cause the entire production line to come to a standstill. Instead of dealing with logistical headaches, developing a sound routine can prevent downtime associated with repairs and part replacements.

Carton Box Packaging Machine Maintenance

★Preventive Lubrication
The user is responsible for the moving parts of the machine. These parts must be lubricated regularly with a drop of lubricant, as specified in the machine manual. Neglecting this preventive lubrication can result in defects due to friction, which are usually not covered by warranty.

★Keep the Machine Clean
Periodic cleaning can prevent long downtimes associated with more intensive, less frequent maintenance. Dirty machines are unpleasant to work on and can hide potential functionality problems. A simple wipe-down at the end of the workday can have a lasting impact on preventing larger issues later on.

★Machine Inspection
Regular inspection is key to ensuring the machine’s long lifespan. Catching problems early can lead to timely and inexpensive fixes, whereas prolonged issues can increase repair costs. Routine inspections ensure the machine continues to operate with the same accuracy and efficiency as when it was first purchased. Regular examination of all machine parts can help reduce repair downtime and drive savings for your business.

★Changing Parts Regularly
Carton box packaging machine parts can wear out with regular use. To ensure optimal performance, you should be aware that parts will need to be changed regularly to avoid slowing down mechanisms or complete failure. If parts fail, it will disrupt the production line and workflow. Therefore, parts should only be changed by qualified personnel or certified service technicians. To reduce downtime, familiarize yourself with the types of parts used in your machine and the process for changing spare parts. These parts fall into three categories:

High-Wear Parts: These have a short lifecycle.

Medium-Wear Parts: These have a longer lifecycle and may or may not fail.

Low-Wear Parts: These should generally never fail.

Part changes may also coincide with machine upgrades. Maintain good communication with your provider to ensure no recommended upgrades are needed in the near future, which will result in a better-performing carton box packaging machine.

★Autonomous Maintenance Tasks
Autonomous maintenance tasks involve machine operators performing maintenance instead of professional technicians. This practice provides several benefits, including:

Increased Machine Availability: Self-maintenance reduces downtime (both scheduled and unscheduled), increasing equipment availability and making it possible to reduce production times and respond more effectively to changes.

Improved Operator Ownership: By focusing on machine maintenance, operators address the causes of problems rather than just their effects. Self-maintenance enhances the stability of the machine's processes.

Reduced Maintenance Costs: Self-maintenance significantly reduces maintenance costs by decreasing the number of corrective maintenance hours needed. Planned shutdowns for preventive maintenance are less costly than unplanned corrective maintenance.

Reduced Risk of Accidents: Understanding and managing the risks associated with the machine can reduce the likelihood of accidents.

Our Factory

Aydly Intelligent Packaging Machinery (Guangdong) Co., Ltd. is one of the subsidiary of A.S.I. Group (American Sunflower International Group Co., Ltd.) headquartered in New York USA, Singapore and Hong Kong, China. We specialize in carton box printing and packaging machines, corrugated paperboard production lines, laminating machines, flat bed die cutting and creasing machines, EPC with paper making machines, etc.
We integrate technology research and development, manufacturing and processing, assembly, sales, export, installation and after-sales service, etc. We commit to provide a full range of solutions to the global customers of paper and paperboards related with industries of manufacturing, printing and packaging.

Products Equipments

Our machines are used in paper mills, corrugated paperboard factories, carton box makers, printing and packaging factories, etc.

FAQ

Q: What are the main components of carton box printing machine?

A: Carton box printing machine has three main parts: A feeding unit, a printing unit, and a slotting unit. Corrugated boxes can be printed with logos, designs, and a variety of colors. After the print is complete, the corrugated board is fed into a trimmer that perforates the corrugated board into flaps.

Q: What is the function of the carton box printing machine body?

A: The fuselage is the rigid skeleton of the packaging machine, which mainly plays the role of supporting and positioning each component. All mechanisms or devices are installed on top of it. The fuselage must be stable and the center of gravity as low as possible to facilitate smooth mechanical operation. The material, structure, shape, decoration, etc. of the fuselage are designed according to the use and characteristics of the packaging machinery.

Q: What is the function of the control system for carton box printing machines?

A: The function of the control system is to control the relevant parts of the packaging machine and coordinate their process functions. Complete the packaging on time and in order. The devices of the control system mainly include photoelectric control, electronic control, electro-mechanical control, pneumatic control, jet control, etc. The most common system of these is electro-mechanical control.

Q: What are the advantages of a carton box packaging machine?

A: Compared with other types of packing machines, the carton box packaging machine we provide has the advantages below:
The modular construction of the machine provides a high degree of flexibility.
The linear arrangement of the machine makes the packaging of cartons particularly accurate.
Use the internationally renowned servo control system.
The control cabinet is pre-wired to make the start fast.
Short format change time.

Q: What are the characteristics of a carton box packaging machine?

A: There are some characteristics below:
1) Packaging form
automatic transmission, unpacking, boxing, batch number printing, sealing, waste removal, and other characteristics, compact and reasonable structure.
2) Easy to operate
servo/stepper motor, touch screen, PLC programmable control system, man-machine interface display operation is clearer and simpler, high degree of automation, more humanized;
3) Wear protection
the frame and plate have sufficient strength and rigidity, the frame is equipped with the main drive motor and clutch brake of the machine, the machine plate is equipped with various transmission systems, and the torque overload protector can realize the main drive motor and transmission parts in the case of overload to protect the machine parts from damage.

Q: How to choose a carton box packaging machine?

A: First of all, you need to determine which products you will pack in the packaging machine you will buy. Packaging machinery manufacturers generally have a variety of products, but some clients in the purchase of packaging equipment, hope to be able to package their own all types of products through a device. In fact, this is a very wrong idea, because generally speaking, the special machine than the compatible machine packaging effect is better. The variety that can be packaged by packaging equipment should not exceed 5 varieties, and the products with too large size differences should be packaged separately.

Q: Is the operation of the carton box printing machine simple?

A: As far as possible, choose a machine with simple operation and maintenance, complete accessories, and automatic continuous feeding, which can improve packaging efficiency and reduce labor costs, which is suitable for the long-term development of enterprises.

Q: What is the function of the transmission mechanism of the carton box printing machine?

A: The transmission mechanism varies from different models and transmits power and movement to various actuators, control elements, auxiliary mechanisms, etc. Its main transmission components are gears, ratchets, cams, sprockets, belts, worm gears, screw nuts, etc.

Q: What is the core part of a carton box printing machine?

A: The actuator is the core part of the packaging process operation and auxiliary operation and often uses movable mechanical components or manipulators to realize packaging operations. The packaging process operation mainly includes molding, filling, wrapping, sealing, labeling, etc.; Packaging assistance operations include the supply and transfer of packaging materials, packaging containers and products, and the output of finished products.

Q: What are the applications of a carton box packaging machine?

A: In the early stage of industrialization, the carton has always been packed by manual means, and with the development of large-scale mechanization, the corresponding more subdivided machine came into being, carton packaging machine is also formed in this process, replacing manual labor, the paper packaging machine is widely used in beer, chemical, food, medicine, and other industries, supporting in the filling line, etc., secondary carton packaging for all kinds of bottles and cans, greatly improving production efficiency.

Q: Can carton box packaging machines be used in the food and beverage industry?

A: Packaging of cereal boxes, snack bags, and frozen food items.
Filling and sealing of jars, bottles, and cans.
Packing of confectionery items like chocolates and candies.

Q: Can the pharmaceutical industry use carton box printing machines?

A: Packaging of pharmaceutical tablets, capsules, and vials.
Cartoning of blister packs and pouches.
Packaging of medical devices and healthcare products.

Q: What will happen if the electromechanical magnet of the carton box printing machine does not engage?

A: Check the electromagnet fuse, check whether the electromagnet has signs of power, eliminate mechanical jamming, and detect the internal power supply when everything is normal; Often encountered in the weighing packaging machine is the cause of this failure: sensor damage, bridge voltage failure, line connection or interruption is wrong, the elimination method is: detect the load signal of the sensor and the connection or host, close to detect the bridge and amplification circuit or computer output display circuit, sometimes there will be poor system stability resulting in unstable bag volume to solve this problem can test whether the line is in good condition.

Q: What are the precautions for operating carton box printing machines?

A: Read and follow the manufacturer's safety instructions and operating manual closely.
Wear personal protective equipment like safety glasses, gloves, and protective clothing at all times while using the machine.
Keep the work area tidy and organized to avoid trip hazards and accidents.
Inspect the machine regularly for signs of wear, damage or malfunction and fix issues promptly.

Q: What precautions should be taken when using a carton box printing machine?

A: Only trained and authorized personnel should operate the machine. Untrained users can pose a safety risk.
Never reach into the machine while it is running or attempt to clear jams without following lockout procedures.
Always disconnect power to the machine before performing maintenance or repairs.
Use proper lockout/tagout procedures when servicing the machine to prevent accidental restarting.
Keep emergency stop buttons clearly visible and accessible. Know how to use them quickly.
Maintain and lubricate the machine according to the manufacturer's schedule to avoid mechanical issues.
Report any safety hazards, injuries or incidents to your supervisor immediately.

Q: Does the quality of carton box printing machines determine the price?

A: The quality of the product itself is the basic factor that determines the price. Including the value of various accessories, whether the life and use method of accessories are perfect, the technical content contained in the product, and other information, the quality determines the price of the sealing machine.

Q: What are the characteristics of the carton box printing machine?

A: There are some characteristics of the carton box printing machine below:
Using automatic bottle separation technology, and online continuous operation; the whole machine adopts PLC control and fully automatic operation.
Frequency control main drive; container grouping brushless servo motor.
Standard chains and internationally renowned hot melt devices; self-lubricating chains and permanently lubricated bearings.
Evenly apply glue according to running speed; electronically adjust glue length.
Simple touch operation; multiple security protection.
Slim body design and large sliding doors for easy entry and exit
Adapt to a variety of bottle types, easy to adjust;
Motors, cylinders, and electronic controls use imported brand components and standard parts to reduce spare parts inventory;
Try to use 304 material, the whole machine is beautiful and generous.

Q: How do you clean a carton box printing machine?

A: To clean conveyor belts and rollers: Remove any loose particles using a vacuum cleaner or compressed air. Wipe the equipment's surfaces with a cloth dampened with a mild cleaning solution.

Q: What is the function of carton box printing machine?

A: Carton box printing machines are used to package products or components. This product area includes equipment that forms, fills, seals, wraps, cleans, and packages at different levels of automation. Carton box printing machines also include related machinery for sorting, counting, and accumulating.

Q: How do you maintain a carton box packaging machine?

A: Carton box packaging machine maintenance preventive schedule
Machine inspection by qualified technicians.
Monitoring and changing high-wear parts regularly.
Ensuring high-wear parts are kept in stock.
Lubricating the machine regularly.
Ongoing training for machine operators.
