Automatic Slitting And Creasing Machine
Our Automatic Slitting And Creasing Machines have different types as following:

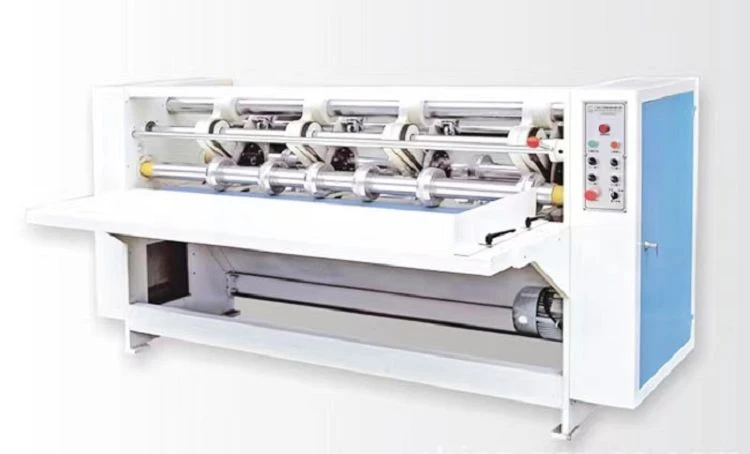

-- Thin Blade Slitter Scorer Machine, thin blade type, Model: TSS- series
Main Features as following:
The Thin Blade Slitter Scorer Machine is also call "Thin Edge Slitting Creasing Machine", it is made according to more and more high quality requirements for the current carton packaging industry, in order to overcome the corrugated paper separating machine incision was pressed flat, degumming, edge mouth paper surface is damaged, and developed a new generation of carton packaging machinery series. Thin Blade Slitter Scorer Machine is suitable for 3, 5, 7 ply corrugated cardboard cutting and line pressing (creasing), the machine adopts step-less speed regulating motor as the power, Gear drive, with low noise, smooth transmission, large adjustment range and other characteristics, paper boards knife blade is made of 1.2 mm thick high strength alloy material, and equipped with automatic grinding device, timing grinding, so that the cardboards can be cut smoothly, corrugated straight and beautiful, it is the equipment for present carton packaging industry to improve product quality.
Optional: can add "Safety Cover" to meet requirement of European CE conformity.
Technical parameters of Thin Blade Slitter Scorer Machine:
|
Item |
TSS-2000 |
TSS-2200 |
TSS-2500 |
|
Max. diameter of the knife(mm) |
200 |
200 |
200 |
|
Min. length of the paper(mm) |
1900 |
2100 |
2400 |
|
Min. length of the division (mm) |
120 |
120 |
120 |
|
Power of main motor (kw) |
3 |
3 |
4 |
|
Creasing roller (pcs) |
6 |
6 |
6 |
|
Slitting knives (pcs) |
4 |
4 |
4 |
|
Dimensions (mm) |
2650×1076×1400 |
3150×1076×1400 |
3150×1076×1400 |
|
Weight of the equipment (kg) |
2000 |
2300 |
2500 |
--Automatic Slitting and Creasing Machine, Simple Type
The machine can slit waste corrugated paperboards into another smaller size so as to save cost.
When some orders are too small to complete the original corrugated paperboards, we can use Automatic Slitting And Creasing Machine, Simple Type to slit the size of the required corrugated card boards.
Main Features:
1. Use the pre-folding wheels to feed the card boards, the feeding is very stable;
2. Through pre-pressing, after slitting, complete the requirements through the pressing, and the indentation does not appear cracked.
3. Thin blade knife cutting slitting (thickness is only 1 mm), automatic and manual grinding wheels is used to keep the blades very sharp and make the slitting cardboard smooth and tidy.
